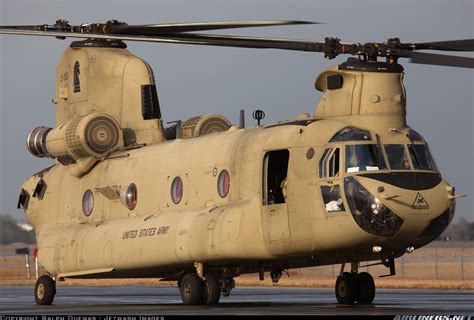

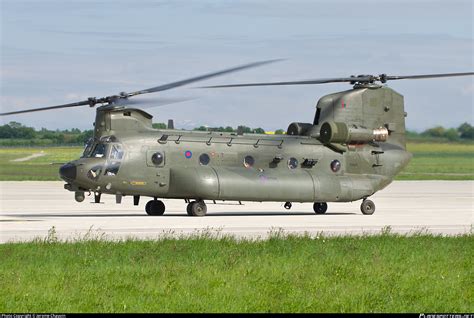

The Boeing CH-47F Chinook is a twin-engine, tandem rotor, heavy-lift helicopter developed by Boeing Vertol. The CH-47F is an advanced version of the CH-47 Chinook family, which has been in service since the 1960s. With a rich history spanning over five decades, the Chinook has undergone significant upgrades and modernizations to become one of the most reliable and versatile heavy-lift helicopters in the world. The CH-47F model, in particular, has been extensively used by the US Army and other military forces around the globe for a variety of missions, including transport, medical evacuation, and combat operations.
Design and Development
The CH-47F Chinook is a result of continuous improvements and upgrades to the original CH-47A model. The new design features advanced avionics, improved engines, and enhanced survivability features. The helicopter is powered by two Honeywell T55-GA-714A engines, each producing 4,777 horsepower. The advanced digital cockpit features a Common Avionics Architecture System (CAAS), which provides improved situational awareness and reduced pilot workload. The CH-47F also features an advanced flight control system, which includes a digital automatic flight control system (DAFCS) and a health usage monitoring system (HUMS).
Key Features and Capabilities

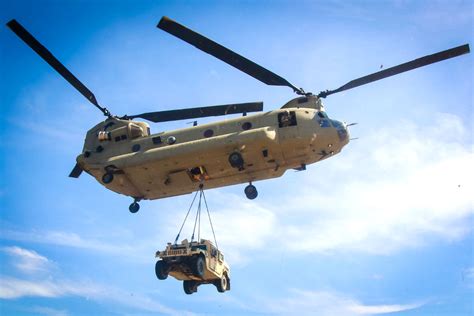

The CH-47F Chinook has a maximum gross weight of 50,000 pounds and can lift payloads of up to 24,000 pounds. The helicopter has a range of over 400 nautical miles and can operate at altitudes up to 20,000 feet. The CH-47F is also equipped with advanced communication systems, including satellite communications and data links, which enable real-time communication and coordination with other aircraft and ground units. The helicopter’s advanced avionics and sensors also provide enhanced situational awareness and targeting capabilities.
| Specification | Value |
|---|---|
| Length | 98 feet 10 inches |
| Height | 18 feet 11 inches |
| Rotary Diameter | 60 feet |
| Empty Weight | 24,578 pounds |
| Maximum Gross Weight | 50,000 pounds |
| Engine | 2 x Honeywell T55-GA-714A |
| Power | 4,777 horsepower each |
| Range | 400 nautical miles |
| Ceiling | 20,000 feet |
Key Points
- The CH-47F Chinook is a heavy-lift helicopter with advanced avionics and engines.
- The helicopter has a maximum gross weight of 50,000 pounds and can lift payloads of up to 24,000 pounds.
- The CH-47F features an advanced digital cockpit and improved survivability features.
- The helicopter has a range of over 400 nautical miles and can operate at altitudes up to 20,000 feet.
- The CH-47F is used by the US Army and other military forces around the world for transport, medical evacuation, and combat operations.
Operational History
The CH-47F Chinook has been extensively used in various military operations around the world, including Iraq, Afghanistan, and Syria. The helicopter has proven itself to be a reliable and versatile platform, capable of operating in challenging environments and lifting heavy payloads. The CH-47F has also been used for humanitarian missions, such as disaster relief and medical evacuation.
Maintenance and Upgrades
The CH-47F Chinook has a comprehensive maintenance program, which includes regular inspections and repairs. The helicopter’s advanced avionics and engines also feature built-in test equipment and diagnostic systems, which enable technicians to quickly identify and repair faults. The US Army has also implemented a program to upgrade the CH-47F fleet with new engines and avionics, which will further improve the helicopter’s performance and reliability.
What is the maximum payload capacity of the CH-47F Chinook?
+The maximum payload capacity of the CH-47F Chinook is 24,000 pounds.
What is the range of the CH-47F Chinook?
+The range of the CH-47F Chinook is over 400 nautical miles.
What is the ceiling of the CH-47F Chinook?
+The ceiling of the CH-47F Chinook is 20,000 feet.
In conclusion, the Boeing CH-47F Chinook is a highly advanced and capable heavy-lift helicopter, with a rich history of service and a proven track record of reliability and versatility. Its advanced design and capabilities make it an ideal platform for a variety of military and civilian missions, and its continued use and upgrade by the US Army and other military forces around the world is a testament to its enduring value and importance.
