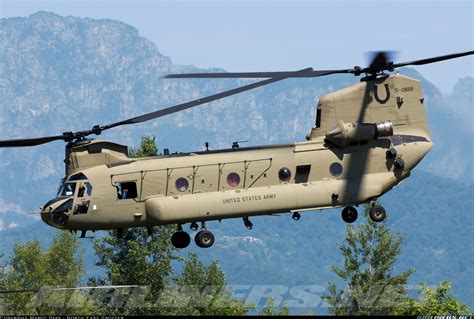

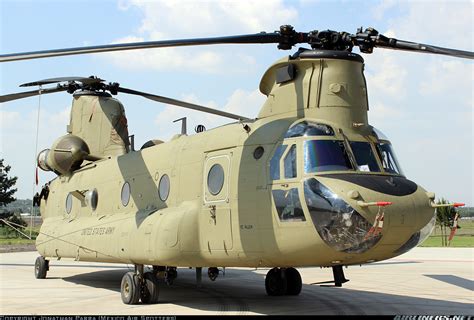

The Boeing CH-47 Chinook is a twin-engine, tandem rotor, heavy-lift helicopter used by the United States Army and other nations. With a history spanning over five decades, the Chinook has become an iconic symbol of military aviation, renowned for its exceptional cargo-lifting capabilities and versatility in various operational environments. The CH-47's development began in the early 1960s, with the first production model, the CH-47A, entering service in 1962. Since then, the helicopter has undergone numerous upgrades and modernizations, resulting in the current CH-47F model, which boasts advanced avionics, improved engines, and enhanced survivability features.
Design and Capabilities
The CH-47 Chinook is designed to provide heavy-lift cargo transport, medical evacuation, and troop transport capabilities. Its tandem rotor configuration, with one rotor facing forward and the other aft, allows for greater lift and stability, making it an ideal platform for transporting large payloads. The helicopter’s cargo compartment measures 30 feet long, 7 feet wide, and 7 feet high, providing ample space for carrying a variety of cargo, including vehicles, artillery, and supplies. The CH-47F model features a maximum gross weight of 50,000 pounds, with a maximum payload capacity of 24,000 pounds. Its range and endurance enable it to operate in diverse environments, from urban to remote areas, and its advanced avionics suite includes a digital cockpit, autopilot system, and advanced navigation systems.
Operational History
The CH-47 Chinook has seen extensive service in various military operations, including the Vietnam War, Gulf War, and conflicts in Afghanistan and Iraq. Its versatility and reliability have made it a crucial asset for military forces, providing critical support for ground operations, including troop transport, medical evacuation, and cargo resupply. The Chinook has also been used in humanitarian missions, such as disaster relief and search and rescue operations. Its ability to operate in challenging environments, including high-altitude and hot-weather conditions, has earned it a reputation as a reliable and dependable workhorse.
| Specification | CH-47F |
|---|---|
| Length | 98 feet 10 inches |
| Rotor Diameter | 60 feet |
| Height | 18 feet 8 inches |
| Empty Weight | 24,578 pounds |
| Maximum Gross Weight | 50,000 pounds |
| Maximum Payload | 24,000 pounds |
| Range | 400 nautical miles |
| Service Ceiling | 20,000 feet |
Key Points
- The CH-47 Chinook is a twin-engine, tandem rotor, heavy-lift helicopter with a maximum payload capacity of 24,000 pounds.
- The helicopter has a range of 400 nautical miles and a service ceiling of 20,000 feet, making it suitable for various military operations.
- The CH-47F model features advanced avionics, including a digital cockpit, autopilot system, and advanced navigation systems.
- The Chinook has seen extensive service in various military operations, including the Vietnam War, Gulf War, and conflicts in Afghanistan and Iraq.
- The helicopter's versatility and reliability have made it a crucial asset for military forces, providing critical support for ground operations.
Upgrades and Modernizations
The CH-47 Chinook has undergone numerous upgrades and modernizations throughout its service life, with a focus on improving its performance, survivability, and maintainability. The CH-47F model, introduced in 2007, features advanced avionics, including a digital cockpit, autopilot system, and advanced navigation systems. The helicopter’s engines have also been upgraded, with the introduction of the T55-L-714A engine, which provides increased power and efficiency. Additionally, the CH-47F features enhanced survivability features, including a crashworthy fuel system, armor plating, and a ballistic protection system.
Future Developments
As the CH-47 Chinook continues to play a vital role in modern military operations, the US Army is exploring future upgrades and modernizations to ensure the helicopter remains relevant and effective. Potential developments include the integration of advanced materials and technologies, such as composite materials and additive manufacturing, to reduce weight and increase efficiency. The Army is also considering the introduction of new engines, such as the T55-L-714B, which promises to provide even greater power and efficiency. Furthermore, the CH-47F may be equipped with advanced sensors and communication systems, enabling it to operate more effectively in complex and dynamic environments.
What is the primary role of the CH-47 Chinook in military operations?
+The primary role of the CH-47 Chinook is to provide heavy-lift cargo transport, medical evacuation, and troop transport capabilities, making it a versatile and essential asset for military forces.
What are the key features of the CH-47F model?
+The CH-47F model features advanced avionics, including a digital cockpit, autopilot system, and advanced navigation systems, as well as enhanced survivability features, including a crashworthy fuel system, armor plating, and a ballistic protection system.
What are the potential future developments for the CH-47 Chinook?
+Potential future developments for the CH-47 Chinook include the integration of advanced materials and technologies, the introduction of new engines, and the installation of advanced sensors and communication systems, enabling the helicopter to operate more effectively in complex and dynamic environments.
In conclusion, the Boeing CH-47 Chinook is a legendary helicopter with a proven track record of exceptional performance and versatility in various military operations. Its advanced avionics, enhanced survivability features, and impressive cargo-lifting capabilities make it an indispensable asset for modern military forces. As the CH-47 continues to evolve and modernize, it is likely to remain a vital component of military aviation, providing critical support for ground operations and ensuring the success of military missions worldwide.
